Drizzle query monitoring

Disclaimer:

This blog post is about things I did on my own free time, not endorsed by my employer.

A little over a month ago, Ronald posted a blog about the different query logging plug-ins that are available for Drizzle. This was pretty exciting news, especially when I saw the details that were included in the logs.

Meanwhile, a few weeks ago, I started looking at the REST API that comes with the MySQL Enterprise Monitor.

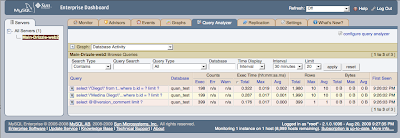

The result is that we can now see most of the information returned by the plug-in, on the Dashboard.




How?
A colleague at work, wrote a little Perl script that interacts with the REST API, and I took his work as the foundation for my agent.pl script.

The next problem was to find a way to call this script as soon as there was a new entry on the log. After a little Google search, I went ahead and decided to ask my friend Adriano Di Paulo (who among other things, introduced me to MySQL).

A few minutes later, he showed me a working example of the Tail Perl module.

That was exactly what I needed, as soon as there is a new entry, I call the function assemble_queries() and I pass the new log entry as the parameter.

sub tail_log {
 my $file=File::Tail->new(name=>$log_file, maxinterval=>1, reset_tail=>0);
 while( defined (my $line=$file->read ) ) {
   print "\n" . $line . "\n" if $DEBUG > 3;
   assemble_queries( $line );
 }
}

The assemble_queries() function is mostly based on what MC blogged about some time ago. On his blog post, he shows how to collect query related data using Dtrace and Perl.

Then, every n number of queries, I use send_json_data() to send the query information to the Dashboard, delete the sent data and it is ready to process more queries.

Now that I'm writing this, I realized that if send_json_data() fails, the information related to the queries are lost :|. (Note to self, fix it).

There are other functions in there, but they are mostly for housekeeping.

How do I use it?
Very simple, get the agent.pl script from the MySQL Forge website, edit the credentials, hosts, and ports to fit your needs (Future versions would include some kind of config file).

And then you call the script like this:

$ DEBUG=1 perl agent.pl  --serveruuid="22222222-5555-5555-5555-222222222211" \
--serverhostuuid="ssh:{11:11:11:11:11:11:11:11:11:11:11:11:11:11:11:21}"\
--serverdisplayname="Main-Drizzle-web2" \
--log-file=/path/to/log/file

As soon as the scripts starts, it will add the drizzle server to the service manager, and once you start sending queries to drizzle, those queries will end up on the UI.

Next?
Next is already done :). I modified the agent.pl script to use the gearman logging plugin. I'll write a blog about it very soon.

Thanks for reading and enjoy!
